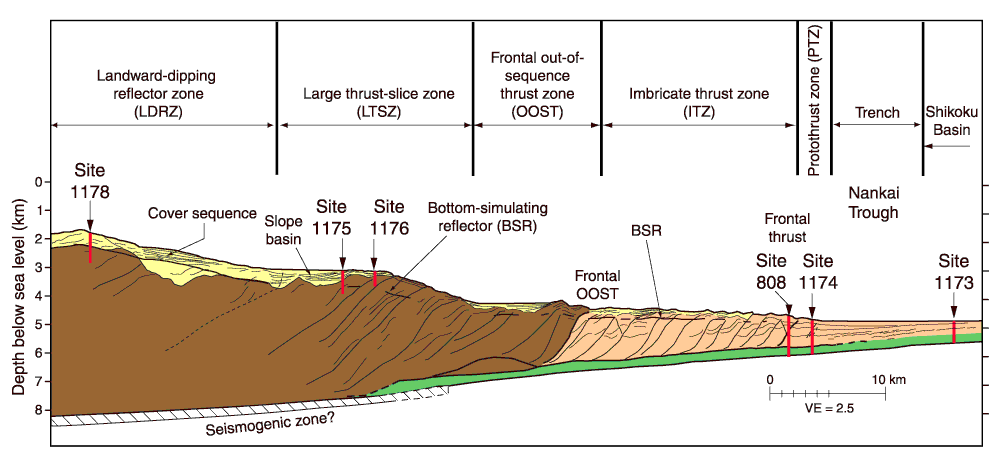

Figure F2. Generalized depth section showing site locations and major structural features and provinces. This drawing is based on seismic reflection data from Hills et al. (2001). VE = vertical exaggeration.

Figure F2. Generalized depth section showing site locations and major structural features and provinces. This drawing is based on seismic reflection data from Hills et al. (2001). VE = vertical exaggeration.
