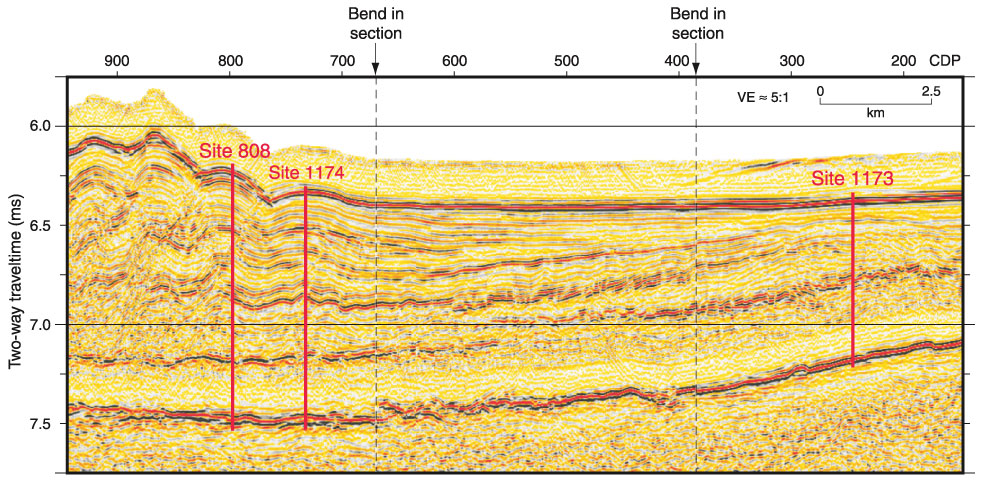

Figure F3.
Seismic time section across Leg 196 Sites 1173 and 808 showing the transition
from the Shikoku Basin to the imbricate thrust zone. The section is composed of
a northwest-trending segment of seismic line 215 through Site 1173, with a
diagonal transition to line 281 that passes near Sites 1174 and 808. CDP =
common depth point, VE = vertical exaggeration.
