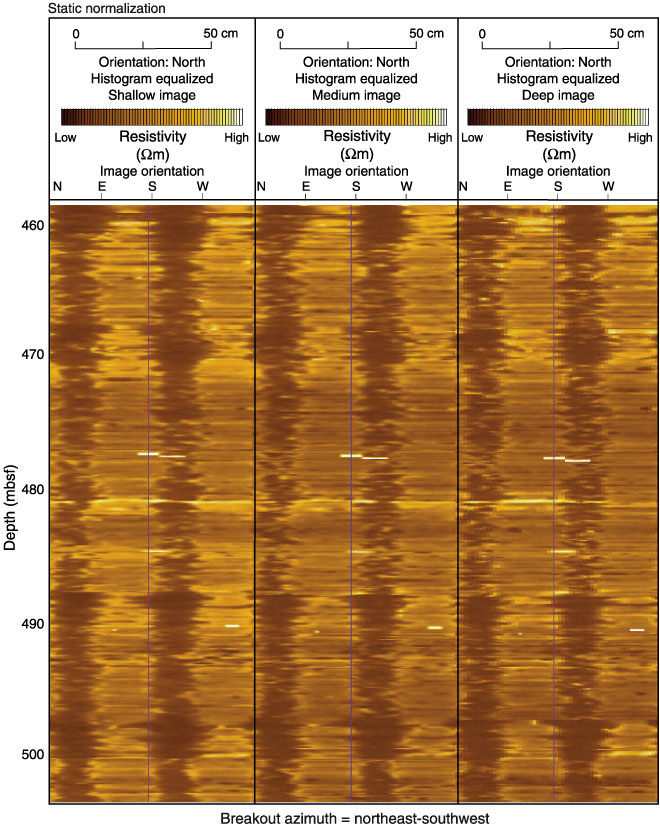

Figure F9. Hole 808I breakouts (dark low-resistivity parallel lines) at 460-505 mbsf interpreted from resistivity-at-the-bit images at 1-in (shallow), 3-in (medium), and 5-in (deep) penetration from the borehole. This image is ~100 m below the frontal thrust zone, close to the base of log Unit 2. The breakouts indicate that the orientation of the minimum horizontal compressive stress (₂) is ~northeast-southwest, which is in good agreement with the plate convergence vector of ~310°-315° aligned with the maximum compressive stress, ₁ (90° to ₂).
