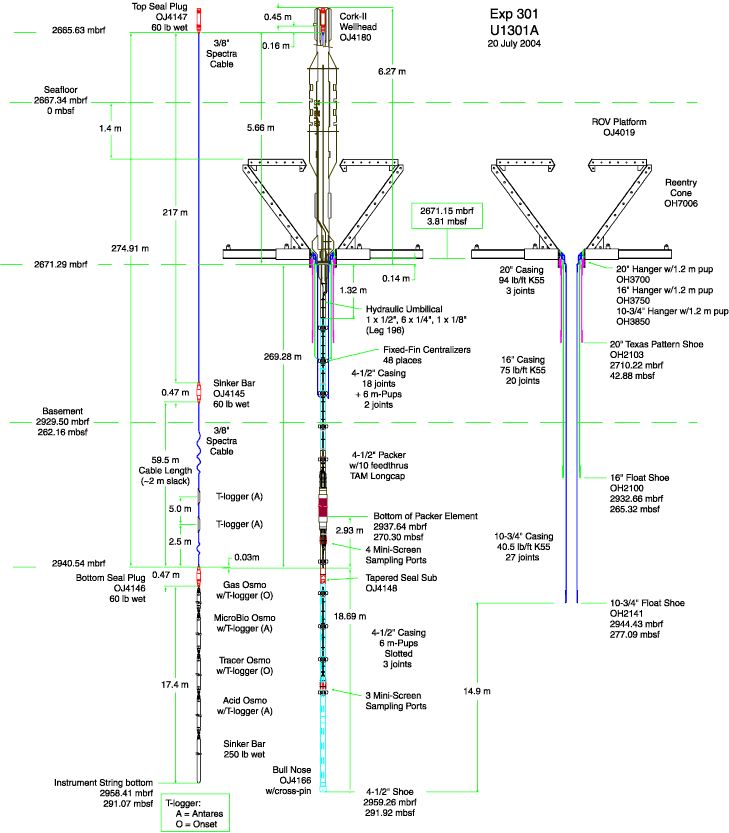

Figure F14. Schematic showing the Hole U1301A reentry cone and borehole casing (right), CORK borehole completion (center), and the instrument string deployed through the 41/2 inch casing (left). ROV = remotely operated vehicle.
