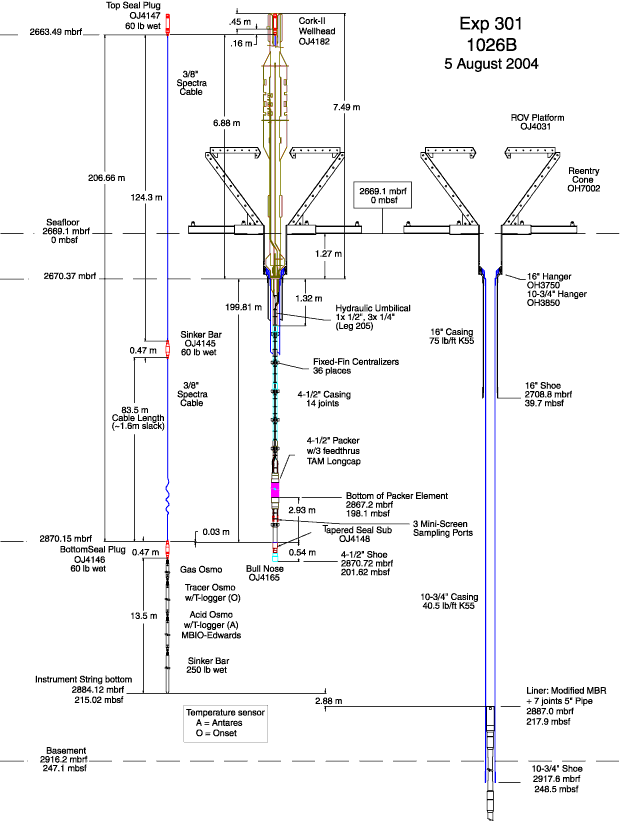

Figure F24. Schematic showing the Hole 1026B reentry cone and borehole casing (right), CORK-II borehole completion (center), and the instrument string deployed through the 41/2 inch casing (left). ROV = remotely operated vehicle.
