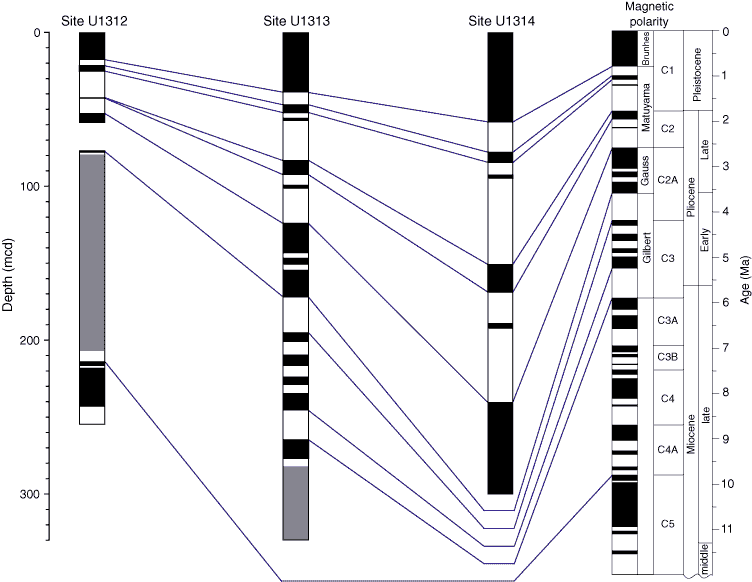

Figure F6. Expedition 306 schematic magnetostratigraphy. The paleomagnetic polarity interpretations (black = normal polarity, white = reversed polarity, gray = undetermined polarity) were obtained on the basis of inclination data acquired after 20 mT AF demagnetization. The reference geomagnetic polarity timescale is displayed on the right side of the figure (Cande and Kent, 1995). Continuous blue lines = main tie points used to establish the age models.
