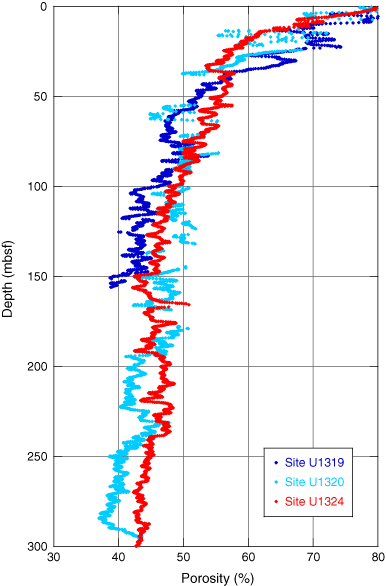

Figure F39. Porosity versus depth at all Ursa Basin and Brazos-Trinity Basin #4 sites from LWD data. The values associated with washout zones as indicated from the caliper log are not shown. Sites U1319 and U1320 are located in Brazos-Trinity Basin #4 and the sites in the Ursa Basin are represented by the data from Site U1324.
