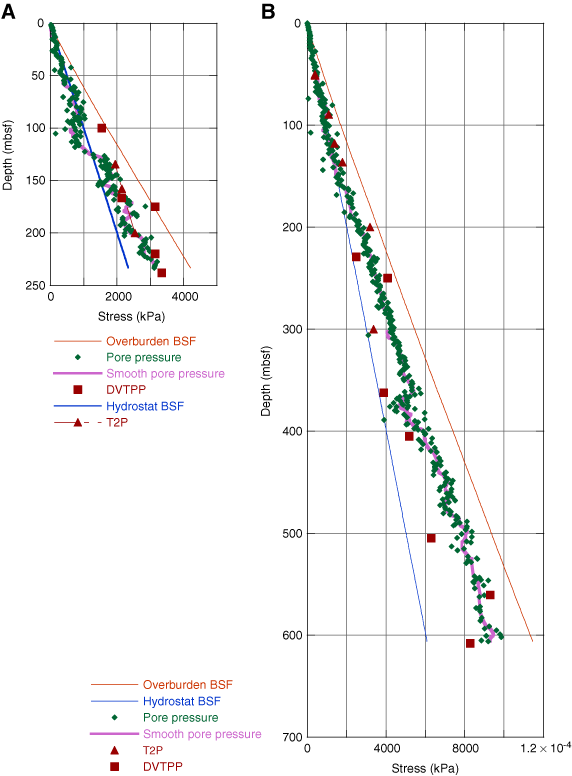

Figure F43. Porosity-based pressure prediction for (A) Site U1324 and (B) Site U1322. Both locations have fundamentally similar results. Conditions are predicted to be more or less hydrostatic to 150 mbsf and at deeper levels pressure rises to more than half of the distance to the lithostatic pressure. BSF = below seafloor, DVTPP = Davis-Villinger Temperature-Pressure Probe, T2P = temperature and dual pressure probe.
