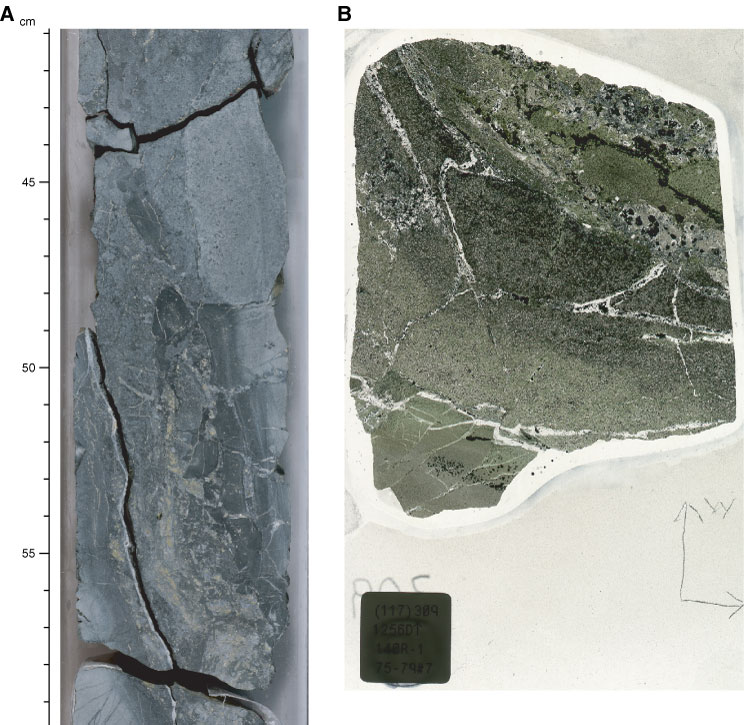

Figure F44. Cataclastic zone at dike contact characterized by flow structures and multiple veining. Veins have dilational features and different mineral fillings; clear crosscutting relationships are visible. A. Close-up of core (interval 309-1256D-140R-1, 4258 cm). B. Close-up of thin section (Sample 309-1256D-140R-1, 4159 cm) (thin section 117).
