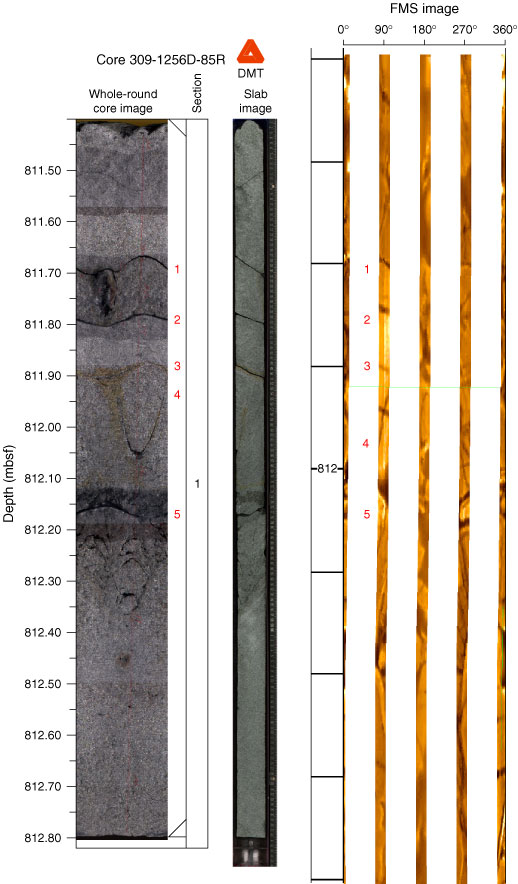

Figure F53. An example of a whole-round image (left) and matching slab image. Fractures appear as sinusoids in the whole-round image and lines in the slab image. Preliminary FMS image (right) has been depth-shifted <10 cm to align fractures with the core images. Red numbers adjacent to the whole-round image and within the FMS image identify matching fractures.
