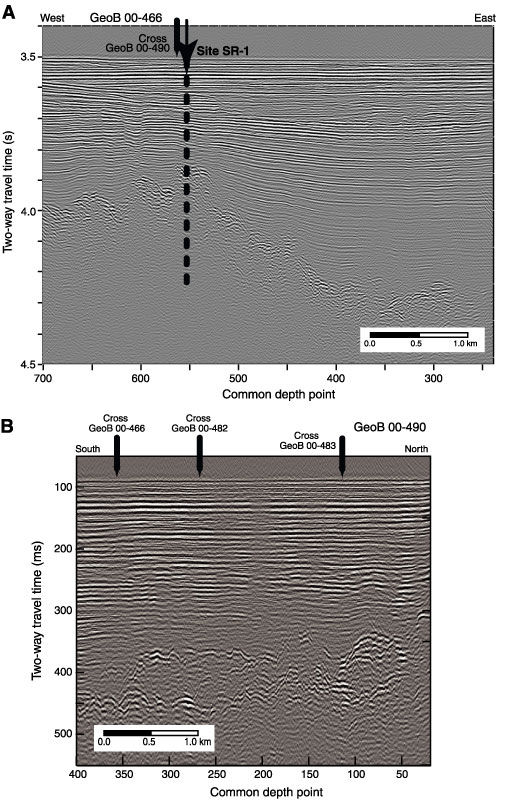

Figure F5. Multichannel seismic lines across the South Ridge area. Line locations are shown in Figure F4. A. GeoB 00-466, crossing Site SR-1. B.GeoB 00-490, a "crossing line" that runs roughly perpendicular to GeoB 00-466, subparallel to the buried basement ridge. The basement reflector is not particularly distinct on this image because it does not follow the peak of the buried ridge.
