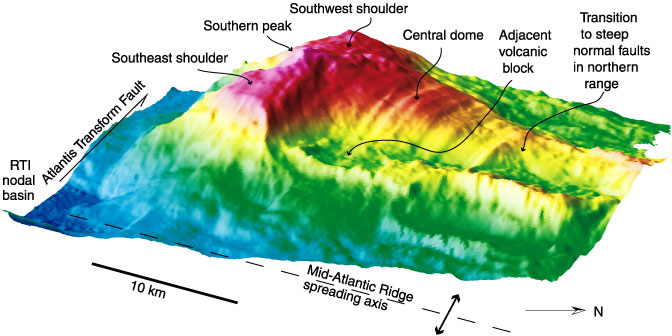

Figure F1. Perspective view of Atlantis Massif morphology (vertical exaggeration = ~1.8). Structural components of the Oceanic Core Complex are labeled. Swath bathymetry provides 100% coverage in this area, which extends ~25 km parallel to the spreading axis and ~18 km in the transform direction. Data are gridded at 100 m intervals. RTI = ridge-transform intersection.
