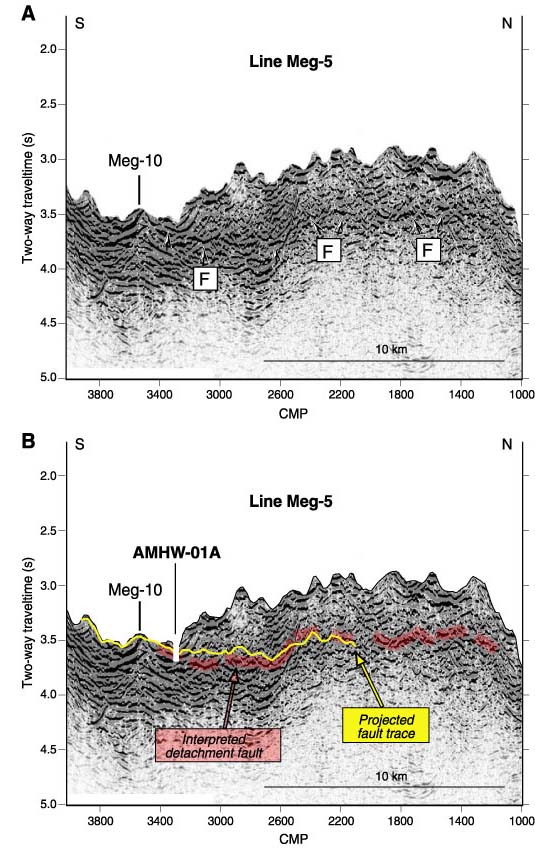

Figure F6. A. Time-migrated MCS line Meg-5, which parallels the strike of the core complex (modified from Canales et al., 2004). Reflector F is interpreted to be the detachment fault where it underlies the hanging wall block. This reflector closely coincides with (B) the trace of the exposed detachment when its eastern surface slope is projected at depth to the location of line Meg-5 (yellow line). Location of Site AMHW-01A is indicated. CMP = common midpoint.
