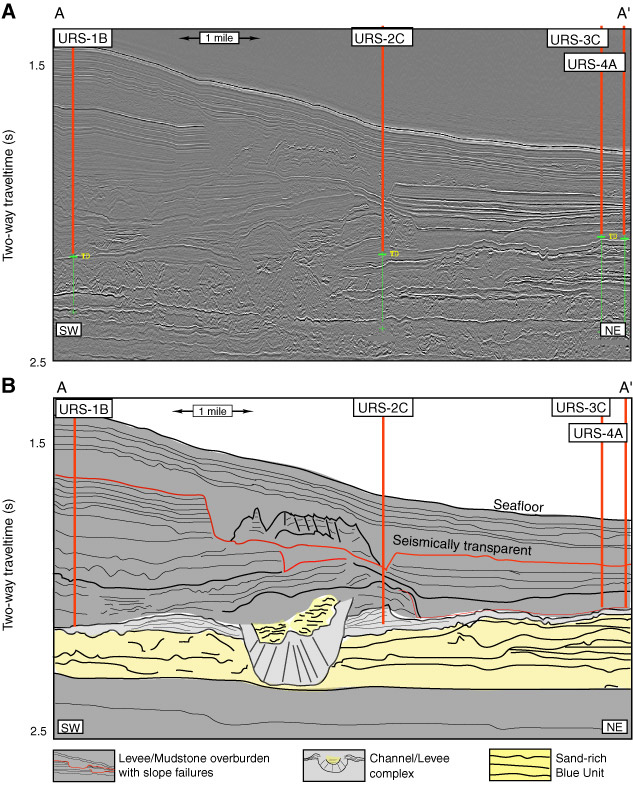

Figure F10. A. Seismic cross section AA'. B. Interpreted cross section AA'. The sand-prone Blue Unit has been incised by a channel-levee complex and then overlain by a thick and heavily slumped hemipelagic mudstone wedge that thickens to the west (left). The Blue Unit sands are correlated to a distinct seismic facies. Seismic reproduced with permission of Shell Exploration and Production Company.
