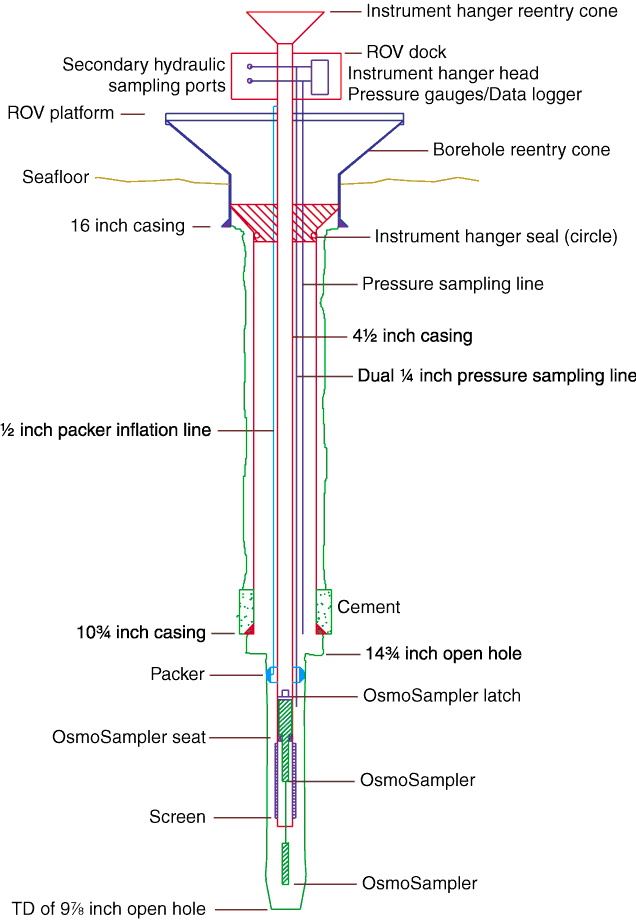

Figure F7. Schematic of the CORK-II as installed at the Costa Rica Margin (from Shipboard Scientific Party, 2003). ROV = remotely operated vehicle. TD = total depth.
