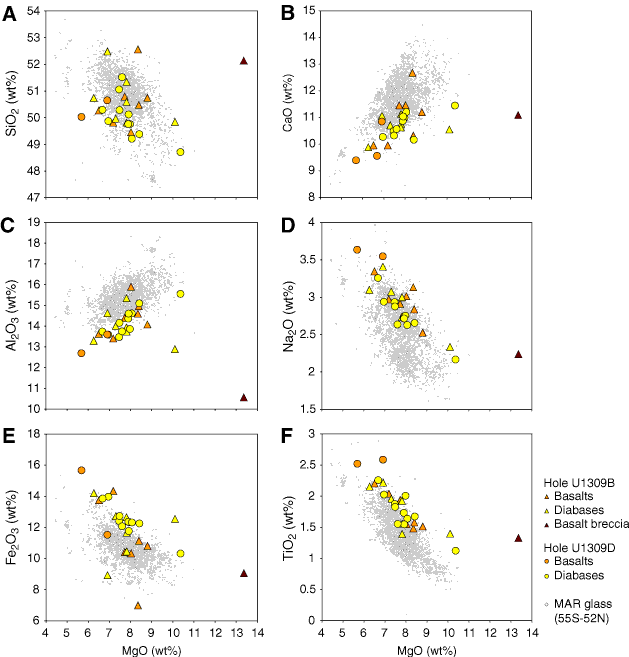

Figure F9. Volatile free (A) SiO2, (B) CaO, (C) Al2O3, (D) Na2O, (E) Fe2O3, and (F) TiO2 contents versus MgO content for basalts, diabases, and basalt breccia from Site U1309. MAR = Mid-Atlantic Ridge.
