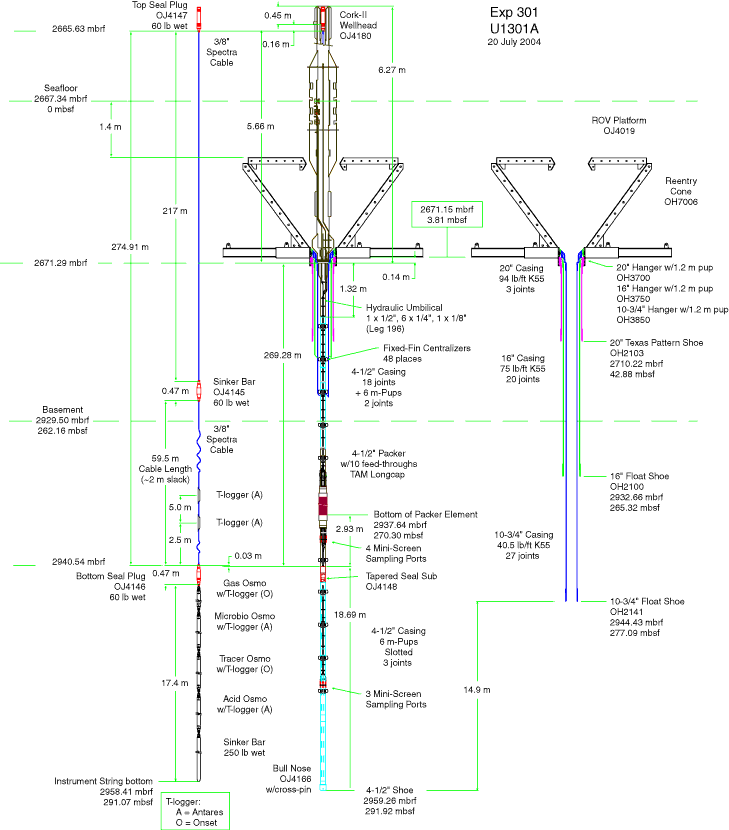

Figure F7. Schematic showing the Hole U1301A reentry cone and borehole casing (right), CORK borehole completion (center), and the instrument string deployed through the 4½ inch casing (left). ROV = remotely operated vehicle. TAM = TAM International. Osmo = OsmoSampler.
