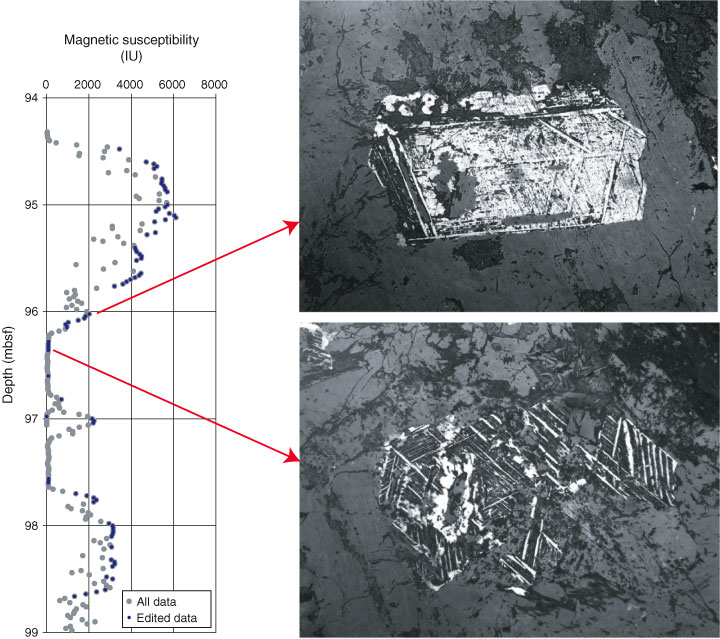

Figure F272. A relatively fresh magnetite grain from a moderate-susceptibility interval (top), compared with a magnetite from an adjacent very low susceptibility interval (bottom) where the magnetite (light tones) has largely been replaced by ilmenite (dark tones). Hole U1309B, lower diabase, Unit 62.
