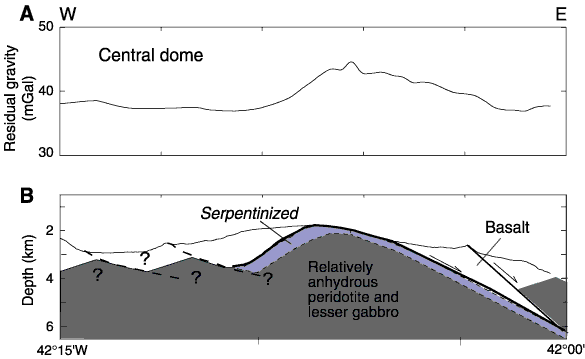

Figure F5. A. Gravity modeling results for profile across the central dome and eastern volcanic block. Residual gravity has contribution of seafloor topography, constant thickness/density crust, and lithospheric cooling removed (Blackman et al., 1998). B. Topographic profile shows subsurface blocks of a model that fits the gravity to within the uncertainties of the data.
